Standard Rectifier Diodes 5SDD ABB Replacement
High-power Standard Rectifier Diodes, also known as Normal Recovery Diodes in disc design is a press pack type general-purpose diodes. Features: optimised for line frequency; low on-state losses; high current handling capabilities.
Rectifier Diodes ADD JY ENERGITM are a replacement, analog, alternative semiconductor devices for Standard Rectifier Diodes 5SDD ABB Power Grids Switzerland, Hitachi Energy.
The standard rectifier diodes converting DC and AC currents up to 7500A in circuits with voltages up to 8500V.
Their main applications are rectifiers for large AC drives, aluminum smelting and other metal refining as well as trackside supply. “Air-cooled heatsinks O series for disc devices”, “Air heatsink SF series”, “Water heatsink SS series” for diode cooling are also available to order. The diode has an industry standard ceramic housing making it easy to integrate the device into existing equipment. This diode has a disc housing with pressure contacts. The polarity of the diode (anode, cathode) is determined by the icon on the case. The technical specifications, part numbering guide, datashets for diodes are listed below.
Rectifier Diodes JY ENERGITM have the following features: low static and dynamic losses, high values of VRSM/VRRM, extensive experience of using the devices in various industries, range of voltages from 100 to 9000 V and amperages from 100 to 7500 A, high resistance to thermal and electric cycling.
Our company provides a quality guarantee for rectifier diodes of 2 years from the date of purchase. When supplying diodes, if necessary, we provide technical passport and certificate of conformity. The final price of standard rectifier diodes depends on the voltage class, quantity, delivery terms, manufacturer, country of origin and form of payment.
For questions regarding the acquisition of Modules, SCR Thyristors, Diodes send an email request to:
And we will provide you a commercial offer for delivery. For a large number, we will provide an individual price!!!
We are open to manufacture products at our production facilities according to your requests and technical task.
- High Power Stud Thyristor Series:
The photo gallery shows many different semiconductor devices, semiconductor chips and SCRs produced by AS ENERGITM, examples of test reports. Previous Next

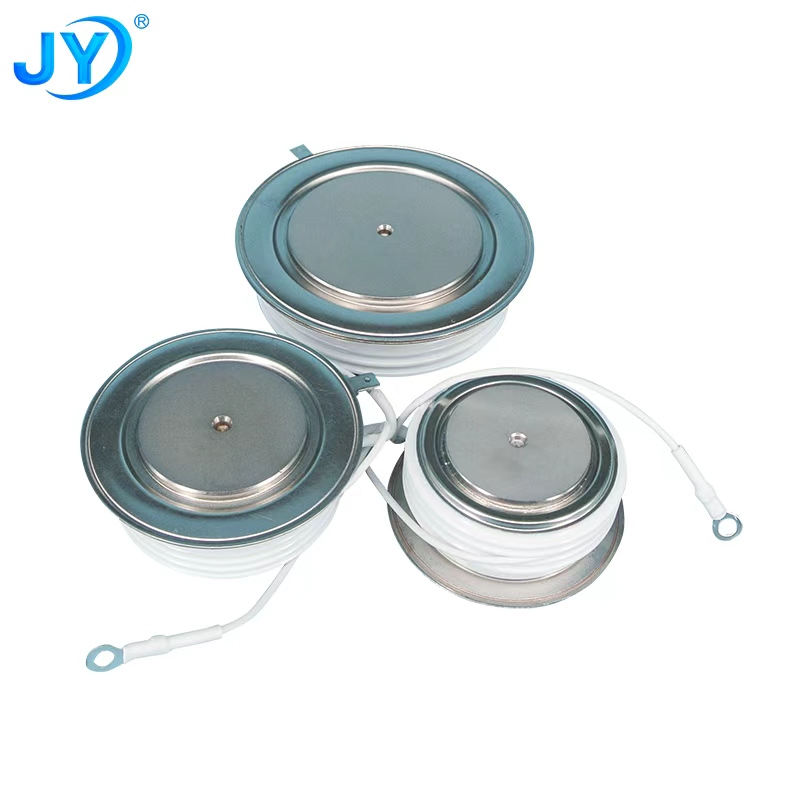

- High Power Disc Thyristor Series:
- Power Thyristors T123, T223, T323 (100A – 500A)
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T261-160 | 100-1800 | 160(92) 186(85) |
251 | 4.5 | 125 | 1.55/502 | 0.850 | 1.278 | 50 | 200-1000 | 250 | 2.5 | 800 | 125-500 | 80 | 0.150 |
| T361-160 | 2400-2600 | 160(80) | 251 | 3.5 | 125 | 2.00/502 | 1.415 | 1.290 | 20 | 500-1000 | 250 | 2.5 | 125 | 250 | 61 | 0.145 |
| Thyristors T123 | |||||||||
|
|
||||||||
|
|||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T123-100 | on request
+
–
|
5000 - 6000V | 145A (85ºC) 176A (70ºC) |

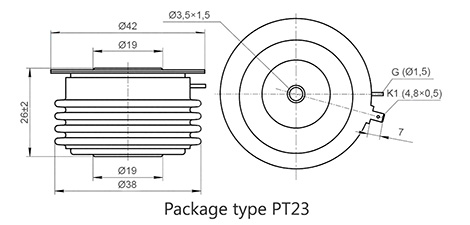

50 - 60 | 100 g | PT23 | O123 |  |
|
| T123-160 | on request
+
–
|
3400 - 4200V | 185A (85ºC) 226A (70ºC) |
34 - 42 | 100 g | PT23 | O123 | |
|
| T123-200 | on request
+
–
|
400 - 1800V | 240A (85ºC) 300A (70ºC) |
4 - 18 | 70 g | PT21 | O123 | |
|
| T123-250 | on request
+
–
|
400 - 1800V | 280A (85ºC) 350A (70ºC) |
4 - 18 | 70 g | PT21 | O123 | |
|
| T123-320 | on request
+
–
|
400 - 1600V | 320A (85ºC) 410A (70ºC) |

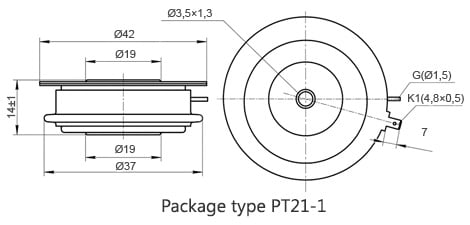

4 - 16 | 70 g | PT21-1 | O123 | |
|
| T123-400 | on request
+
–
|
800 - 1200V | 440A (85ºC) 536A (70ºC) |
8 - 12 | 70 g | PT21 | O123 | |
|
| T123-500 | on request
+
–
|
400 - 800V | 620A (85ºC) 715A (70ºC) |
4 - 8 | 70 g | PT21 | O123 | |
|
| T223-250 | on request
+
–
|
1800 - 2600V | 252A (85ºC) 312A (70ºC) |
18 - 26 | 100 g | PT23 | O123 | |
|
| T323-200 | on request
+
–
|
2600 - 3400V | 238A (85ºC) 275A (70ºC) |
26 - 34 | 100 g | PT23 | O123 | |
|
| T323-320 | on request
+
–
|
1200 - 1600V | 346A (85ºC) 434A (70ºC) |
12 - 16 | 70 g | PT21 | O123 | |
|
Detailed specifications of Power Thyristors T123, T223, T323
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T123-100 | 5000-6000 | 145 (85°C) 176 (70°C) |
276 | 1.0 | 125 | 2.60/314 | 1.30 | 6.00 | 40 | 2000 | 250 | 2.5 | 200 | 630 | 5 | 0.08 |
| T123-160 | 3400-4200 | 185 (85°C) 226 (70°C) |
355 | 2.8 | 125 | 2.70/502 | 1.10 | 3.50 | 40 | 1600 | 250 | 2.5 | 200 | 400 | 39 | 0.08 |
| T123-200 | 400-1800 | 240 (85°C) 300 (70°C) |
470 | 4.0 | 125 | 1.90/628 | 1.10 | 1.50 | 15 | 200-1600 | 250 | 2.5 | 200 | 160 | 80 | 0.08 |
| T123-250 | 400-1800 | 280 (85°C) 350 (70°C) |
540 | 4.5 | 125 | 1.75/785 | 1.00 | 1.08 | 15 | 200-1600 | 200 | 2.5 | 200 | 160 | 100 | 0.08 |
| T123-320 | 400-1600 | 320 (85°C) 410 (70°C) |
640 | 5.0 | 125 | 1.65/1005 | 1.04 | 0.64 | 20 | 500-1600 | 250 | 2.5 | 200 | 160 | 125 | 0.08 |
| T123-400 | 800-1200 | 440 (85°C) 536 (70°C) |
842 | 5.5 | 130 | 1.65/1257 | 0.83 | 0.58 | 20 | 1600 | 250 | 2.5 | 200 | 125 | 150 | 0.08 |
| T123-500 | 400-800 | 620 (85°C) 715 (70°C) |
1122 | 6.0 | 150 | 1.50/1570 | 0.84 | 0.43 | 30 | 1600 | 250 | 2.5 | 200 | 100 | 180 | 0.08 |
| T223-250 | 1800-2600 | 252 (85°C) 312 (70°C) |
490 | 4.0 | 125 | 2.10/785 | 1.05 | 1.50 | 30 | 1600 | 250 | 2.5 | 200 | 250 | 80 | 0.08 |
| T323-200 | 2600-3400 | 238 (85°C) 275 (70°C) |
432 | 3.5 | 125 | 2.80/628 | 1.07 | 1.10 | 40 | 1600 | 250 | 2.5 | 200 | 320 | 61 | 0.08 |
| T323-320 | 1200-1600 | 346 (85°C) 434 (70°C) |
681 | 5.0 | 125 | 1.65/1005 | 0.90 | 0.64 | 20 | 1600 | 250 | 2.5 | 200 | 320 | 130 | 0.08 |
Power Thyristors T433 (250A)
Thyristors T133
Detailed specifications of Power Thyristors T133
| Thyristors T133 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T133-250 | on request
+
–
|
3400 - 4200V | 300A (85ºC) 373A (70ºC) |
34 - 42 | 180 g | PT32 | O143, O243, O343, OM103, OM104 | |
|
| T133-320 | on request
+
–
|
900 - 2400V | 420A (85ºC) 524A (70ºC) |
9 - 24 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-400 | on request
+
–
|
400 - 1800V | 479A (85ºC) 596A (70ºC) |
4 - 18 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-500 | on request
+
–
|
400 - 800V | 950A (85ºC) 1096A (70ºC) |
4 - 8 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-630 | on request
+
–
|
200 - 1000V | 824A (85ºC) 1000A (70ºC) |
2 - 10 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-800 | on request
+
–
|
400 - 800V | 1100A (85ºC) 1270A (70ºC) |
4 - 8 | 100 g | PT31 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T433
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T433-250 | 3000-3600 | 250 (100°C) 335 (85°C) |
392 | 6.5 | 125 | 2.50/785 | 1.20 | 2.10 | 70 | 200-1000 | 300 | 3.0 | 320 | 250-500 | 210 | 0.040 |
Power Thyristors T933 (160A, 250A)
Thyristors T933
| Thyristors T933 | |||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T933-160 | on request
+
–
|
3800 - 4400V | 160A (108ºC) 290A (85ºC) |

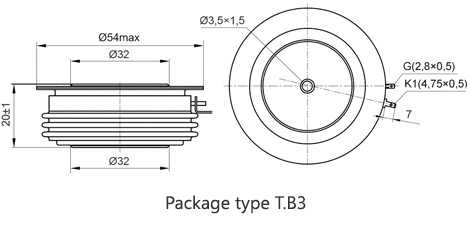

38 - 44 | 180 g | T.B3 | O143, O243, O343, OM103, OM104 | |
|
| T933-250 | on request
+
–
|
3800 - 4400V | 250A (93ºC) 293A (85ºC) |
38 - 44 | 180 g | T.B3 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T933
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T933-160 | 3800-4400 | 160 (108°C) 290 (85°C) |
251 | 3.5 | 125 | 2.15/502 | 1.597 | 2.592 | 70 | 200-2500 | 250 | 2.5 | 400 | 500-800 | 50 | 0.040 |
| T933-250 | 3800-4400 | 250 (93°C) 293 (85°C) |
392 | 3.5 | 125 | 2.60/785 | 1.572 | 2.562 | 70 | 200-2500 | 250 | 2.5 | 400 | 500-800 | 50 | 0.040 |
Thyristors T133
Power Thyristors T133 (250A – 800A)
| Thyristors T133 | |||||||||
|
|
|
||||||||
|
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T133-250 | on request
+
–
|
3400 - 4200V | 300A (85ºC) 373A (70ºC) |
34 - 42 | 180 g | PT32 | O143, O243, O343, OM103, OM104 | |
|
| T133-320 | on request
+
–
|
900 - 2400V | 420A (85ºC) 524A (70ºC) |
9 - 24 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-400 | on request
+
–
|
400 - 1800V | 479A (85ºC) 596A (70ºC) |
4 - 18 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-500 | on request
+
–
|
400 - 800V | 950A (85ºC) 1096A (70ºC) |
4 - 8 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-630 | on request
+
–
|
200 - 1000V | 824A (85ºC) 1000A (70ºC) |
2 - 10 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-800 | on request
+
–
|
400 - 800V | 1100A (85ºC) 1270A (70ºC) |
4 - 8 | 100 g | PT31 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T133
| Thyristors T133 | |||||||||
|
|
|
||||||||
|
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T133-250 | on request
+
–
|
3400 - 4200V | 300A (85ºC) 373A (70ºC) |
34 - 42 | 180 g | PT32 | O143, O243, O343, OM103, OM104 | |
|
| T133-320 | on request
+
–
|
900 - 2400V | 420A (85ºC) 524A (70ºC) |
9 - 24 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-400 | on request
+
–
|
400 - 1800V | 479A (85ºC) 596A (70ºC) |
4 - 18 | 180 g | PT32 (T.B3) | O143, O243, O343, OM103, OM104 | |
|
| T133-500 | on request
+
–
|
400 - 800V | 950A (85ºC) 1096A (70ºC) |
4 - 8 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-630 | on request
+
–
|
200 - 1000V | 824A (85ºC) 1000A (70ºC) |
2 - 10 | 100 g | PT31 (T.B2) | O143, O243, O343, OM103, OM104 | |
|
| T133-800 | on request
+
–
|
400 - 800V | 1100A (85ºC) 1270A (70ºC) |
4 - 8 | 100 g | PT31 | O143, O243, O343, OM103, OM104 | |
|
Power Thyristors T143 (320A – 1250A)
| Thyristors T143 | |||||||||
|
|
||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T143-320 | on request
+
–
|
5000 - 6600V | 346A (85ºC) 425A (70ºC) |
50 - 66 | 280 g | PT43 | O143, O243, O343, OM103, OM104 | |
|
| T143-400 | on request
+
–
|
1800 - 2400V | 490A (85ºC) 613A (70ºC) |

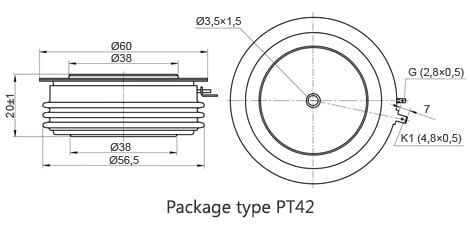

18 - 24 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-500 | on request
+
–
|
400 - 1600V | 604A (85ºC) 750A (70ºC) |
4 - 16 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-630 | on request
+
–
|
400 - 1600V | 680A (85ºC) 937A (70ºC) |
4 - 16 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-800 | on request
+
–
|
900 - 1800V | 847A (85ºC) 1050A (70ºC) |
9 - 18 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-1000 | on request
+
–
|
200 - 1000V | 1010A (85ºC) 1240A (70ºC) |
2 - 10 | 180 g | PT41 PT42 |
O143, O243, O343, OM103, OM104 | |
|
| T143-1250 | on request
+
–
|
400 - 800V | 1518A (85ºC) 1750A (70ºC) |
4 - 8 | 180 g | PT41 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T143
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T143-320 | 5000-6600 | 346(85) 425(70) |
667 | 4.5 | 125 | 1.80/1005 | 1.30 | 1.700 | 30 | 200-2000 | 250 | 2.5 | 200 | 630 | 100 | 0.042 |
| T143-400 | 1800-2400 | 490(85) 613(70) |
630 | 9.0 | 125 | 2.15/1256 | 1.20 | 0.950 | 50 | 200-1600 | 250 | 2.5 | 200 | 250 | 400 | 0.034 |
| T143-500 | 400-1600 | 604(85) 750(70) |
1178 | 11 | 125 | 1.80/1570 | 1.10 | 0.570 | 30 | 200-1600 | 250 | 2.5 | 200 | 320 | 605 | 0.034 |
| T143-630 | 400-1600 | 680(85) 937(70) |
850 | 13 | 125 | 1.65/1980 | 1.10 | 0.370 | 30 | 200-1600 | 250 | 3.5 | 200 | 160 | 845 | 0.030 |
| T143-800 | 900-1800 | 847(85) 1050(70) |
1649 | 14 | 125 | 1.70/2513 | 0.85 | 0.300 | 40 | 200-1600 | 250 | 2.5 | 200 | 160 | 980 | 0.032 |
| T143-1000 | 200-1000 | 1010(85) 1240(70) |
1947 | 21 | 130 | 1.60/3140 | 0.85 | 0.250 | 50 | 200-1600 | 250 | 2.5 | 200 | 100 | 2200 | 0.030 |
| T143-1250 | 400-800 | 1518(85) 1750(70) |
2747 | 21 | 150 | 1.70/3927 | 0.79 | 0.170 | 70 | 200-1600 | 250 | 2.5 | 200 | 100 | 2200 | 0.030 |
Power Thyristors T243 (400A – 1250A)
Thyristors T243
| Thyristors T143 | |||||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T143-320 | on request
+
–
|
5000 - 6600V | 346A (85ºC) 425A (70ºC) |
50 - 66 | 280 g | PT43 | O143, O243, O343, OM103, OM104 | |
|
| T143-400 | on request
+
–
|
1800 - 2400V | 490A (85ºC) 613A (70ºC) |
18 - 24 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-500 | on request
+
–
|
400 - 1600V | 604A (85ºC) 750A (70ºC) |
4 - 16 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-630 | on request
+
–
|
400 - 1600V | 680A (85ºC) 937A (70ºC) |
4 - 16 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-800 | on request
+
–
|
900 - 1800V | 847A (85ºC) 1050A (70ºC) |
9 - 18 | 240 g | PT42 | O143, O243, O343, OM103, OM104 | |
|
| T143-1000 | on request
+
–
|
200 - 1000V | 1010A (85ºC) 1240A (70ºC) |
2 - 10 | 180 g | PT41 PT42 |
O143, O243, O343, OM103, OM104 | |
|
| T143-1250 | on request
+
–
|
400 - 800V | 1518A (85ºC) 1750A (70ºC) |
4 - 8 | 180 g | PT41 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T243
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T243-400 | 3400-4200 | 456(85) 558(70) |
876 | 6.0 | 125 | 2.30/1257 | 1.150 | 1.270 | 70 | 500-2000 | 250 | 2.5 | 200 | 400 | 180 | 0.034 |
| T243-500 | 1800-3400 | 569(85) 706(70) |
1108 | 10 | 125 | 2.00/1570 | 1.120 | 0.670 | 50 | 500-1600 | 250 | 2.5 | 200 | 320 | 500 | 0.034 |
| T243-630 | 600-2800 | 640(85) 796(70) |
1250 | 11 | 125 | 1.95/1980 | 1.050 | 0.500 | 40 | 200-1600 | 250 | 2.5 | 200 | 320 | 610 | 0.034 |
| T243-800 | 600-1800 | 800(85) 833(87) |
1256 | 14 | 125 | 1.70/2512 | 0.939 | 0.324 | 100 | 200-2500 | 250 | 2.5 | 1250 | 160 | 980 | 0.030 |
| T243-1000 | 200-1000 | 1000(85) | 1570 | 19 | 140 | 1.60/3140 | 1.000 | 0.350 | 100 | 200-2500 | 200 | 3.0 | 200 | 160 | 1640 | 0.318 |
| T243-1250 | 800-1200 | 1250(85) 1470(70) |
2308 | 21 | 140 | 1.60/3927 | 0.850 | 0.200 | 50 | 500-16000 | 250 | 2.5 | 200 | 160 | 2200 | 0.030 |
Power Thyristors T343 (400A – 800A)
Thyristors T343
| Thyristors T343 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T343-400 | on request
+
–
|
3800 - 4400V | 400A (92ºC) 455A (85ºC) |
38 - 44 | 280 g | T.C3 | O143, O243, O343, OM103, OM104 | |
|
| T343-500 | on request
+
–
|
2000 - 2400V | 500A (97ºC) 647A (85ºC) |
20 - 24 | 210 g | T.C1 | O143, O243, O343, OM103, OM104 | |
|
| T343-630 | on request
+
–
|
2000 - 2800V | 630A (87ºC) 660A (85ºC) |
20 - 28 | 210 g | T.C1 | O143, O243, O343, OM103, OM104 | |
|
| T343-800 | on request
+
–
|
1000 - 1800V | 800A (84ºC) 88A (85ºC) |
10 - 18 | 280 g | T.C3 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T343
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T343-400 | 3800-4400 | 400(92) 455(85) |
628 | 6.5 | 125 | 2.25/1256 | 1.117 | 1.245 | 100 | 200-2500 | 250 | 2.5 | 500 | 500 | 210 | 0.035 |
| T343-500 | 2000-2400 | 500(97) 647(85) |
785 | 12.5 | 125 | 1.85/1570 | 1.068 | 0.626 | 100 | 200-2500 | 300 | 2.5 | 1600 | 250 | 780 | 0.030 |
| T343-630 | 2000-2800 | 630(87) 660(85) |
989 | 11 | 125 | 2.00/1978 | 0.999 | 0.629 | 100 | 200-2500 | 250 | 2.5 | 1600 | 250 | 600 | 0.030 |
| T343-800 | 1000-1800 | 800(84) 788(85) |
1256 | 14 | 130 | 1.50/1570 | 0.957 | 0.349 | 100 | 200-2500 | 250 | 2.5 | 1250 | 200 | 980 | 0.035 |
Power Thyristors T443 (320A – 630A)
Thyristors T443
| Thyristors T443 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T443-320 | on request
+
–
|
3600 - 4400V | 320A (85ºC) | 36 - 44 | 240 g | T.C2 (PT42) | O143, O243, O343, OM103, OM104 | |
|
| T443-400 | on request
+
–
|
3800 - 4200V | 400A (92ºC) 455A (85ºC) |
38 - 42 | 240 g | T.C2 (PT42) | O143, O243, O343, OM103, OM104 | |
|
| T443-500 | on request
+
–
|
3000 - 3600V | 500A (91ºC) 557A (85ºC) |
30 - 36 | 240 g | T.C2 (PT42) | O143, O243, O343, OM103, OM104 | |
|
| T443-630 | on request
+
–
|
2000 - 2800V | 630A (81ºC) 596A (85ºC) |
20 - 28 | 280 g | T.C3 | O143, O243, O343, OM103, OM104 | |
|
Detailed specifications of Power Thyristors T443
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T443-320 | 3600-4400 | 320(85) | 502 | 5.0 | 140 | 2.60/1005 | 1.30 | 1.45 | 70 | 200-1000 | 250 | 3.0 | 200 | 400 | 180 | 0.034 |
| T443-400 | 3800-4200 | 400(92) 455(85) |
628 | 6.5 | 125 | 2.25/1256 | 1.117 | 1.245 | 100 | 200-2500 | 250 | 2.5 | 500 | 500 | 210 | 0.035 |
| T443-500 | 3000-3600 | 500(91) 557(85) |
785 | 9.0 | 125 | 2.10/785 | 1.150 | 0.800 | 100 | 1000 | 300 | 3.0 | 400 | 320 | 405 | 0.032 |
| T443-630 | 2000-2800 | 630(81) 596(85) |
989 | 11 | 125 | 2.00/1978 | 0.999 | 0.629 | 100 | 200-2500 | 250 | 2.5 | 1600 | 250 | 600 | 0.035 |
Power Thyristors T643 (320A 4600-6500V)
Thyristors T443
Detailed specifications of Power Thyristors T643
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T643-320 | 4600-6500 | 320(89) 344(85) |
502 | 4.0 | 125 | 2.60/785 | 1.338 | 2.351 | 150 | 200-2500 | 300 | 2.5 | 500 | 800 | 80 | 0.035 |
Power Thyristors T743 (320A 4600-6500V)
Detailed specifications of Power Thyristors T743
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T743-320 | 4600-6500 | 320(79) 293(85) |
502 | 4.0 | 125 | 2.60/785 | 1.338 | 2.351 | 150 | 1000-2500 | 250 | 2.5 | 500 | 800 | 80 | 0.045 |
Power Thyristors T153 (630A – 2500A)
Thyristors T443
| Thyristors T153 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T153-630 | on request
+
–
|
2000 - 2800V | 890A (85ºC) 1110A (70ºC) |
20 - 28 | 550 g | PT53 | O153, O253, OM106 | |
|
| T153-800 | on request
+
–
|
1000 - 2000V | 800A (85ºC) | 10 - 20 | 550 g | PT53 | O153, O253, OM106 | |
|
| T153-1000 | on request
+
–
|
1000 - 2000V | 1034A (85ºC) 1290A (70ºC) |
10 - 20 | 550 g | PT53 | O153, O253, OM106 | |
|
| T153-1600 | on request
+
–
|
800 - 1200V | 1687A (85ºC) 2060A (70ºC) |
8 - 12 | 330 g | PT51 | O153, O253, OM106 | |
|
| T153-2000 | on request
+
–
|
400 - 800V | 2340A (85ºC) 2696A (70ºC) |
4 - 8 | 330 g | PT51 | O153, O253, OM106 | |
|
| T153-2500 | on request
+
–
|
200 - 400V | 2616A (85ºC) 3020A (70ºC) |
2 - 4 | 330 g | PT51 | O153, O253, OM106 | |
|
Detailed specifications of Power Thyristors T153
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T153-630 | 2000-2800 | 890(85) 1110(70) |
1740 | 15 | 125 | 1.80/1980 | 1.05 | 0.370 | 50 | 1600 | 250 | 2.5 | 200 | 250 | 1100 | 0.022 |
| T153-800 | 1000-2000 | 800(85) | 1260 | 22 | 125 | 1.50/2512 | 0.92 | 0.250 | 70 | 1600 | 250 | 3.0 | 200 | 250 | 1440 | 0.024 |
| T153-1000 | 1000-2000 | 1034(85) 1290(70) |
2025 | 20 | 125 | 1.70/3140 | 0.95 | 0.260 | 70 | 1600 | 250 | 2.5 | 200 | 250 | 2400 | 0.024 |
| T153-1600 | 800-1200 | 1687A(85) 2060A(70) |
3234 | 30 | 130 | 1.50/5026 | 0.90 | 0.140 | 100 | 1600 | 250 | 2.5 | 200 | 160 | 4500 | 0.018 |
| T153-2000 | 400-800 | 2340(85) 2696(70) |
4233 | 36 | 150 | 1.45/6283 | 0.85 | 0.120 | 100 | 1600 | 250 | 2.5 | 200 | 160 | 6500 | 0.018 |
| T153-2500 | 200-400 | 2616(85) 3020(70) |
4741 | 40 | 150 | 1.40/7850 | 0.80 | 0.090 | 100 | 1600 | 250 | 2.5 | 200 | 125 | 8000 | 0.018 |
Power Thyristors T253 (500A – 2000A)
Thyristors T253
| Thyristors T253 | |||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T253-500 | on request
+
–
|
4600 - 6500V | 500A (101ºC) 696A (85ºC) |
46 - 65 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-630 | on request
+
–
|
5000 - 6000V | 650A (85ºC) 808A (70ºC) |
50 - 60 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-800 | on request
+
–
|
2000 - 2400V | 910A (85ºC) 1130A (70ºC) |
20 - 24 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-1000 | on request
+
–
|
1000 - 2800V | 1093A (85ºC) 1360A (70ºC) |
10 - 28 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-1250 | on request
+
–
|
400 - 1800V | 1270A (85ºC) 1580A (70ºC) |
4 - 18 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-1390 | on request
+
–
|
2000 - 2400V | 650A (85ºC) 808A (70ºC) |
20 - 24 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-1600 | on request
+
–
|
200 - 1000V | 1600A (85ºC) | 2 - 10 | 550 g | PT53 | O153, O253, OM106 | |
|
| T253-2000 | on request
+
–
|
200 - 1000V | 2000A (85ºC) | 2 - 10 | 550 g | PT53 | O153, O253, OM106 | |
|
Detailed specifications of Power Thyristors T253
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W |
Power Thyristors T353 (500A – 1600A)
Thyristors T253
| Thyristors T353 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T353-500 | on request
+
–
|
6000 - 7000V | 588A (85ºC) 720A (70ºC) |
60 - 70 | 720 g | PT54 | O153, O253, OM106 | |
|
| T353-630 | on request
+
–
|
3600 - 4800V | 810A (85ºC) 990A (70ºC) |
36 - 48 | 550 g | PT53 | O153, O253, OM106 | |
|
| T353-800 | on request
+
–
|
2400 - 3400V | 930A (85ºC) 1150A (70ºC) |
24 - 34 | 550 g | PT53 | O153, O253, OM106 | |
|
| T353-1000 | on request
+
–
|
2000 - 3200V | 1000A (85ºC) 1240A (70ºC) |
20 - 32 | 550 g | PT53 | O153, O253, OM106 | |
|
| T353-1600 | on request
+
–
|
1000 - 1800V | 1558A (85ºC) 1930A (70ºC) |
10 - 18 | 550 g | PT53 | O153, O253, OM106 | |
|
Detailed specifications of Power Thyristors T353
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T353-500 | 6000-7000 | 588(85) 720(70) |
1130 | 9 | 125 | 2.40/1570 | 1.35 | 1.200 | 100 | 1600 | 250 | 2.5 | 200 | 800 | 405 | 0.022 |
| T353-630 | 3600-4800 | 810(85) 990(70) |
1550 | 15 | 125 | 2.30/1980 | 1.20 | 0.630 | 70 | 1600 | 250 | 2.5 | 200 | 400 | 1120 | 0.020 |
| T353-800 | 2400-3400 | 930(85) 1150(70) |
1800 | 17 | 125 | 2.00/2512 | 1.12 | 0.447 | 70 | 500-2500 | 250 | 2.5 | 200 | 320 | 1440 | 0.020 |
| T353-1000 | 2000-3200 | 1000(85) 1240(70) |
1940 | 19 | 125 | 2.00/3140 | 1.05 | 0.380 | 70 | 500-1600 | 320 | 2.5 | 200 | 320 | 1800 | 0.020 |
| T353-1600 | 1000-1800 | 1558(85) 1930(70) |
2512 | 29 | 125 | 1.60/5024 | 0.909 | 0.135 | 150 | 200-2500 | 300 | 2.5 | 2000 | 160 | 4200 | 0.020 |
Power Thyristors T453 (630A – 1250A)
Thyristors T253
| Thyristors T453 | |||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T453-630 | on request
+
–
|
2400 - 3600V | 630A (104ºC) 1004A (85ºC) |
24 - 36 | 550 g | PT53 | O153, O253, OM106 | |
|
| T453-800 | on request
+
–
|
2400 - 3600V | 800A (96ºC) 1018A (85ºC) |
24 - 36 | 550 g | PT53 | O153, O253, OM106 | |
|
| T453-1000 | on request
+
–
|
1000 - 2400V | 1000A (95ºC) 1243A (85ºC) |
10 - 24 | 550 g | PT53 | O153, O253, OM106 | |
|
| T453-1250 | on request
+
–
|
1000 - 1800V | 1250A (90ºC) 1385A (85ºC) |
10 - 18 | 550 g | PT53 | O153, O253, OM106 | |
|
Detailed specifications of Power Thyristors T453
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T453-630 | 2400-3600 | 630(104) 1004(85) |
989 | 19 | 125 | 1.80/1978 | 1.088 | 0.457 | 150 | 200-2500 | 300 | 2.5 | 1250 | 400 | 1600 | 0.018 |
| T453-800 | 2400-3600 | 800(96) 1018(85) |
1256 | 20 | 125 | 1.95/2512 | 1.078 | 0.443 | 150 | 200-2500 | 300 | 2.5 | 1250 | 400 | 1800 | 0.080 |
| T453-1000 | 1000-2400 | 1000(95) 1243(85) |
1570 | 25 | 125 | 1.75/3140 | 0.967 | 0.269 | 150 | 200-2500 | 300 | 2.5 | 2000 | 160 | 2800 | 0.018 |
| T453-1250 | 1000-1800 | 1250(90) 1385(85) |
1962 | 29 | 125 | 1.70/3925 | 0.998 | 0.179 | 150 | 200-2500 | 300 | 2.5 | 1250 | 160 | 4200 | 0.018 |
Power Thyristors T553 (500A – 1250A)
Thyristors T253
| Thyristors T553 | |||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T553-500 | on request
+
–
|
3600 - 4400V | 500A (106ºC) 824A (85ºC) |
36 - 44 | 550 g | PT53 | O153, O253, OM106 | |
|
| T553-630 | on request
+
–
|
3600 - 4400V | 630A (99ºC) 855A (85ºC) |
36 - 44 | 550 g | PT53 | O153, O253, OM106 | |
|
| T553-800 | on request
+
–
|
3600 - 4400V | 800A (88ºC) 847A (85ºC) |
36 - 44 | 550 g | PT53 | O153, O253, OM106 | |
|
| T553-1000 | on request
+
–
|
800 - 1800V | 1000A (85ºC) | 8 - 18 | 550 g | PT53 | O153, O253, OM106 | |
|
| T553-1250 | on request
+
–
|
800 - 1800V | 1250A (85ºC) | 8 - 18 | 550 g | PT53 | O153, O253, OM106 | |
|
Detailed specifications of Power Thyristors T553
| Series | VDRM VRRM |
IT(AV) (TC) |
ITRMS | ITSM | Tjmax | VTM/ ITM |
VT(TO) | rT | IDRM IRRM |
(dVD/dt)cr | IGT | VGT | (diT/dt)cr | tq | i2·t | Rth(j-c) |
| V | A(°C) | A | kA | °C | V/A | V | mΩ | mA | V/µs | mA | V | A/µs | µs | kA2·s | °C/W | |
| T553-500 | 3600-4400 | 500(106) 824(85) |
785 | 14 | 125 | 2.20/1570 | 1.169 | 0.754 | 150 | 200-2500 | 250 | 2.5 | 1000 | 500 | 930 | 0.018 |
| T553-630 | 3600-4400 | 630(99) 855(85) |
989 | 15 | 125 | 2.30/1978 | 1.135 | 0.698 | 150 | 200-2500 | 250 | 2.5 | 1000 | 500 | 1000 | 0.018 |
| T553-800 | 3600-4400 | 800(88) 847(85) |
1256 | 16 | 125 | 2.60/2512 | 1.144 | 0.713 | 150 | 200-2500 | 250 | 2.5 | 1000 | 500 | 1100 | 0.018 |
| T553-1000 | 800-1800 | 1000(85) | 1570 | 24.5 | 125 | 1.80/3140 | 1.000 | 0.290 | 70 | 200-1600 | 300 | 3.5 | 200 | 250 | 2400 | 0.020 |
| T553-1250 | 800-1800 | 1250(85) | 1960 | 28 | 125 | 1.60/3925 | 0.920 | 0.210 | 70 | 200-1600 | 300 | 3.5 | 200 | 250 | 3600 | 0.018 |
Power Thyristors T653 (500A – 1000A)
Thyristors T253
| Thyristors T653 | |||||||||
|
|
||||||||
|
|
||||||||
| Series | Price | Voltage VDRM, VRRM |
Average forward current IT(AV) (TC, ºC) |
Voltage code VRRM / 100 |
Weight | Package type | Heatsink | Data sheet | |
| T653-500 | on request
+
–
|
8000 - 9500V | 550A (85ºC) 675A (70ºC) |
80 - 95 | 720 g | PT54 | O153, O253, OM106 | |
|
| T653-630 | on request
+
–
|
2000 - 3400V | 630A (85ºC) | 20 - 34 | 550 g | PT53 | O153, O253, OM106 | |
|
| T653-800 | on request
+
–
|
4600 - 6500V | 800A (79ºC) 733A (85ºC) |
46 - 65 | 550 g | PT53 | O153, O253, OM106 | |
|
| T653-1000 | on request
+
–
|
2000 - 3200V | 1000A (85ºC) | 20 - 32 | 550 g | PT53 | O153, O253, OM106 | |
|
Why choose jythyristor factory
- Own production facilities, including semiconductor silicon chips production
- European brand - 100% quality, favorable price, short production terms
- Over 20 years of experience in the semiconductor industry
- Clients from more than 50 countries trust us
- 20000 items in the product line for currents from 10A to 15000A, voltages from 100V to 9000V
- We produce analogues of other manufacturers' products
- Guaranteed certified quality, warranty period of operation - 2 years
Quality Warranty
Our products are certified and correspond to international standards.
Our company provides a quality guarantee for products of 2 years
We provide certificates of conformity, reliability reports, data sheets and technical passports at the request of the customer.
Each product is tested for the main parameters, and Test reports of the parameters for each product are provided.
Geography of partnership
Thyristor factory company manufactures and supplies power semiconductors to more than 50 countries around the world.
Logistics and Delivery
We deliver our products all over the world with the services of logistics companies: DHL, TNT, UPS, EMS, Fedex, Aramex. Products can be delivered by any means of transport: air, sea, rail and road.
AS ENERGITM Semiconductors Manufacturing
Our products range includes rectifier diodes, phase control thyristors in disc and stud design, avalanche diodes and thyristors, fast switching, high frequency thyristors, fast recovery, welding and rotor diodes, triacs, bridge rectifiers, power modules (thyristor, diode, thyristor-diode, IGBT), and air and water heatsinks to them.
Power diodes and thyristors are produced for currents from 10A to 15000A, voltage range from 100V to 9000V. Power diode and thyristor modules are produced from 25A and up to 1250A, voltage range 400V – 4400V. The range of power semiconductors also includes equivalent, replacement, analogue and alternative semiconductor devices of global manufacturers.
Quality Warranty
Our products are certified and correspond to international standards.
Our company provides a quality guarantee for products of 2 years
We provide certificates of conformity, reliability reports, data sheets and technical passports at the request of the customer.
Each product is tested for the main parameters, and Test reports of the parameters for each product are provided.
Geography of partnership
Thyristor factory company manufactures and supplies power semiconductors to more than 50 countries around the world.
Logistics and Delivery
We deliver our products all over the world with the services of logistics companies: DHL, TNT, UPS, EMS, Fedex, Aramex. Products can be delivered by any means of transport: air, sea, rail and road.
JY ENERGITM Semiconductors Manufacturing
Our products range includes rectifier diodes, phase control thyristors in disc and stud design, avalanche diodes and thyristors, fast switching, high frequency thyristors, fast recovery, welding and rotor diodes, triacs, bridge rectifiers, power modules (thyristor, diode, thyristor-diode, IGBT), and air and water heatsinks to them.
Power diodes and thyristors are produced for currents from 10A to 15000A, voltage range from 100V to 9000V. Power diode and thyristor modules are produced from 25A and up to 1250A, voltage range 400V – 4400V. The range of power semiconductors also includes equivalent, replacement, analogue and alternative semiconductor devices of global manufacturers.
