Dual Thyristor Modules MTC
Power SCR Thyristor Modules MTC JY FACTORY are monolithic design with dual topology of semiconductors (two switches): thyristor-thyristor type.
Used in DC and AC circuits with loads to 1200A and reverse pulse voltages up to 3600V (depending on series).
The thyristor modules are housed in a industry-standard housing making it easy to integrate the device into existing equipment. Part numbering guide for thyristor modules MTC Installation recommendations for thyristor modules The thyristor modules are characterized by high electrical and thermal cycling capability, meaning high reliability and long lifetime in intensive operation modes.
Rated range of currents of rectifier thyristor modules: 26A, 40A, 55A, 70A, 90A, 110A, 135A, 160A, 182A, 200A, 250A, 285A, 300A, 350A, 400A, 500A, 570A, 600A, 800A, 1000A, 1200A. Nominal voltage range: 600V, 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3400V, 3600V. The main (power) terminals are on the top of the case and are marked as 1, 2, 3 (common anode-cathode, cathode, anode). The control terminals are marked as K1, G1, K2, G2.
diagrams): МТC – half-bridge; МТK – scheme with common cathode; МТA – scheme with common anode. Dual thyristor modules MTC series are used in various power equipment – power and control units, power regulators, AC regulators, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.
Our company provides a quality guarantee for thyristor / diode modules of 2 years from the date of purchase. When supplying thyristor / diode modules, if necessary, we provide quality declaration and certificate of conformity. The final price of thyristor / diode modules depends on the class, quantity, delivery terms, manufacturer, country of origin and form of payment.
For questions regarding the acquisition of Modules, SCR Thyristors, Diodes send an email request to:
And we will provide you a commercial offer for delivery. For a large number, we will provide an individual price!!!
We are open to manufacture products at our production facilities according to your requests and technical task.
- Photo Gallery

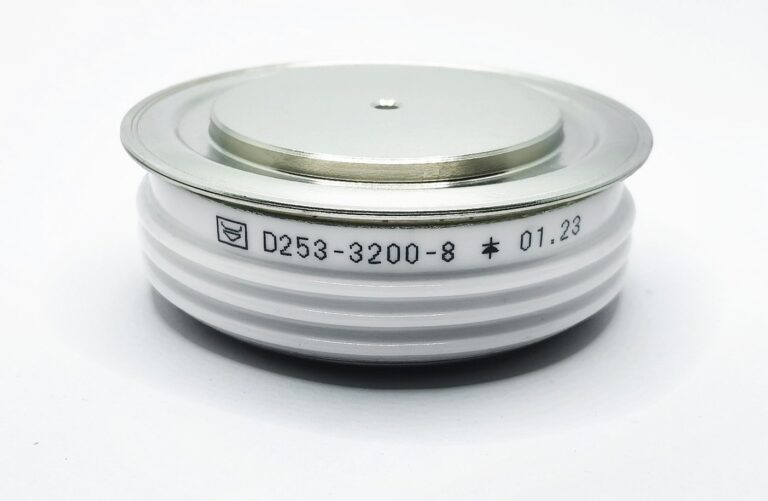

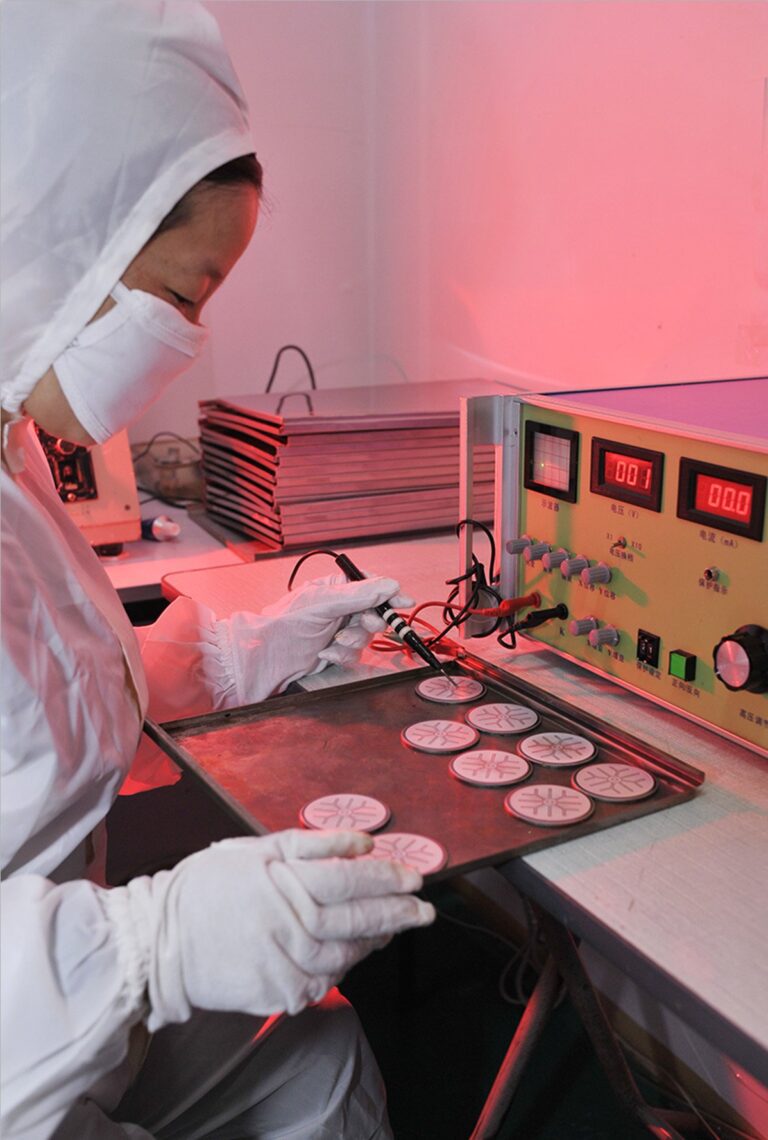

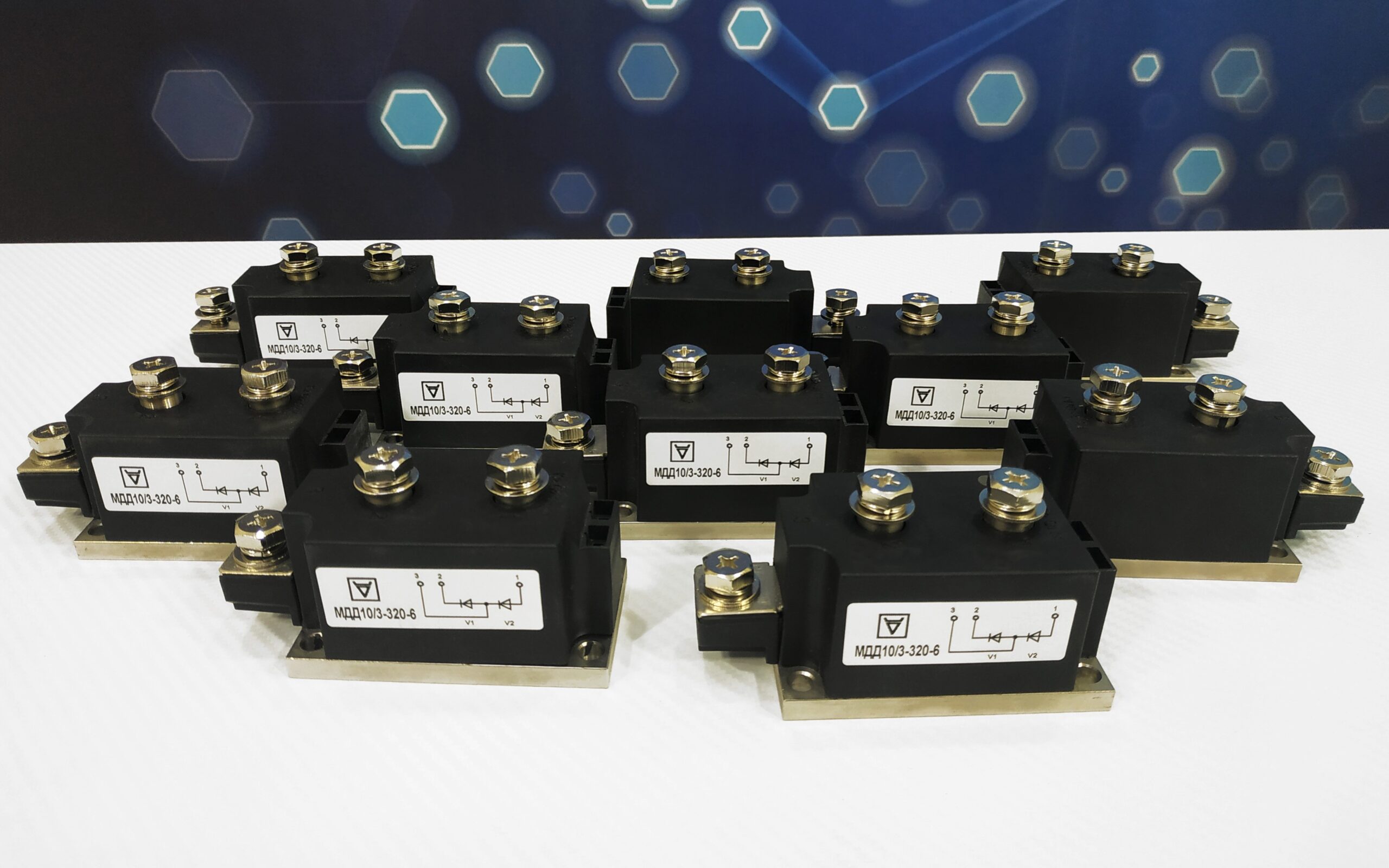

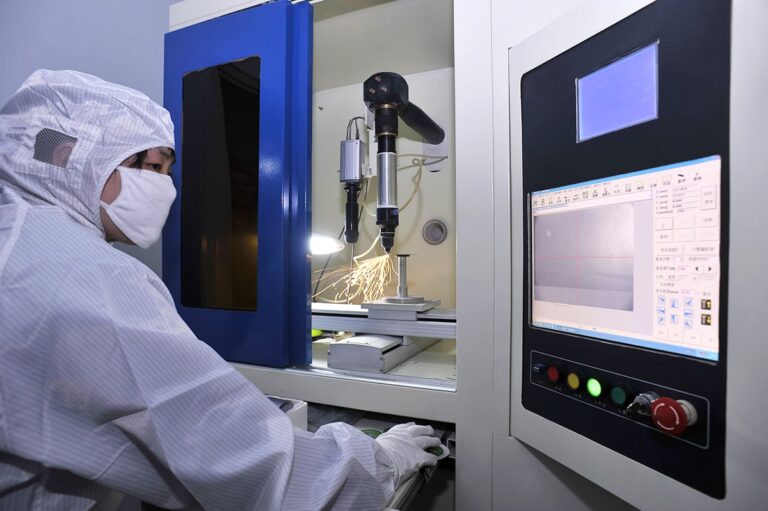

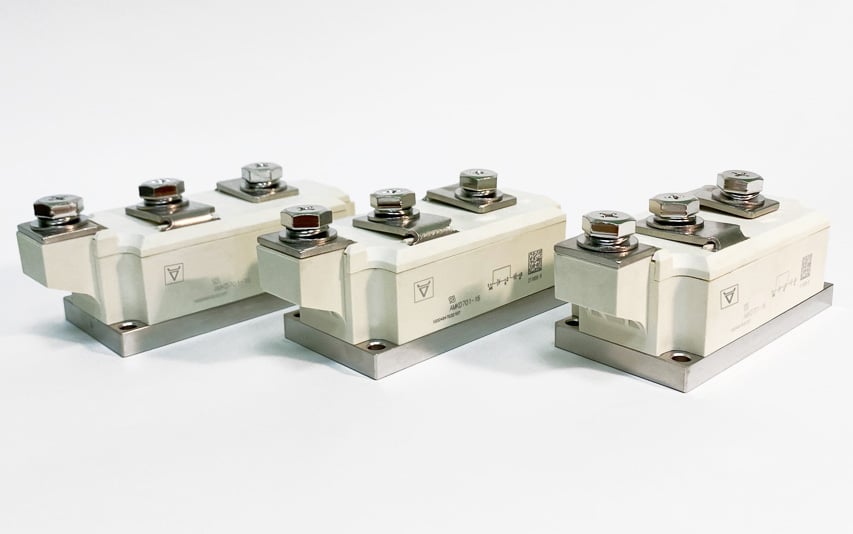

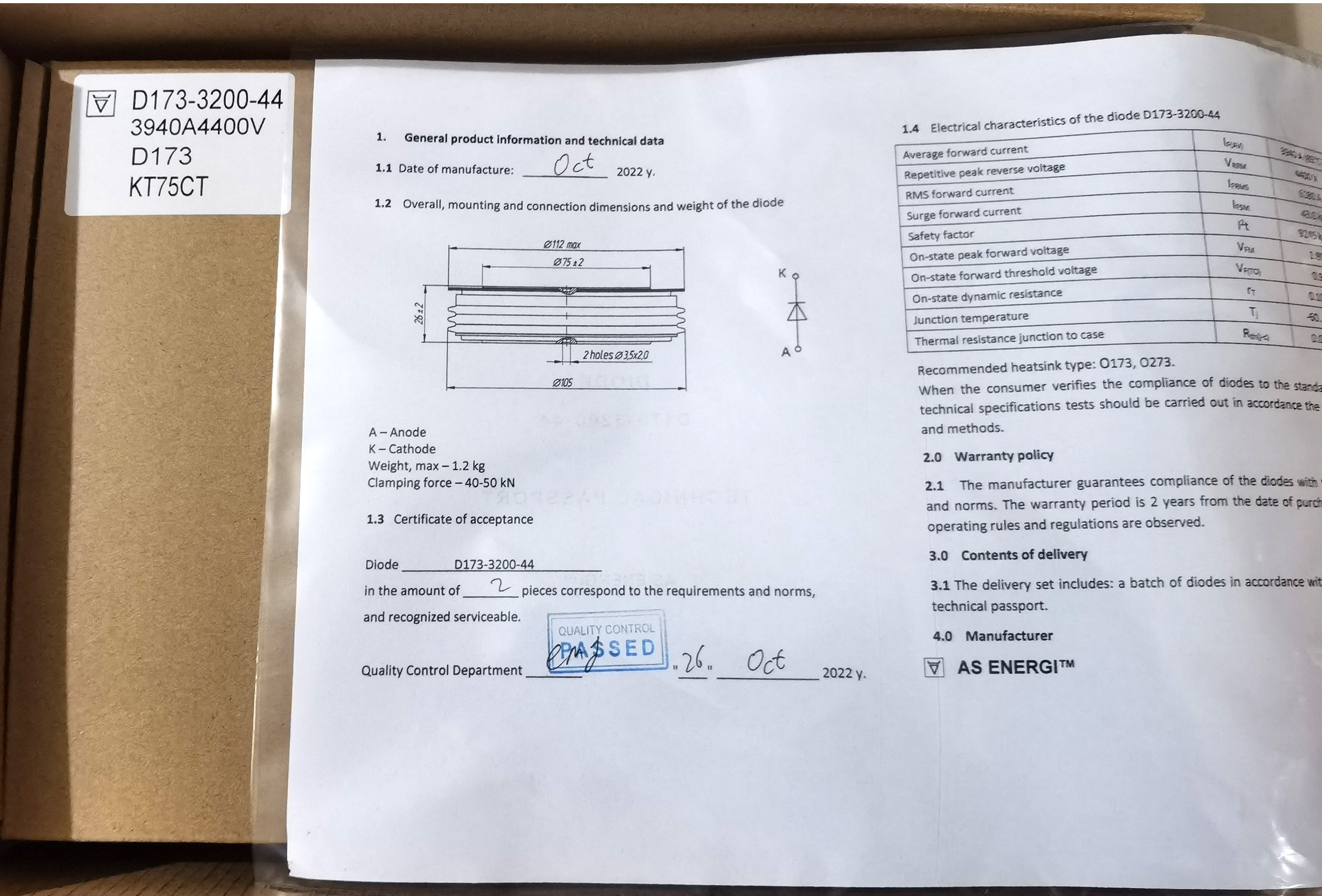

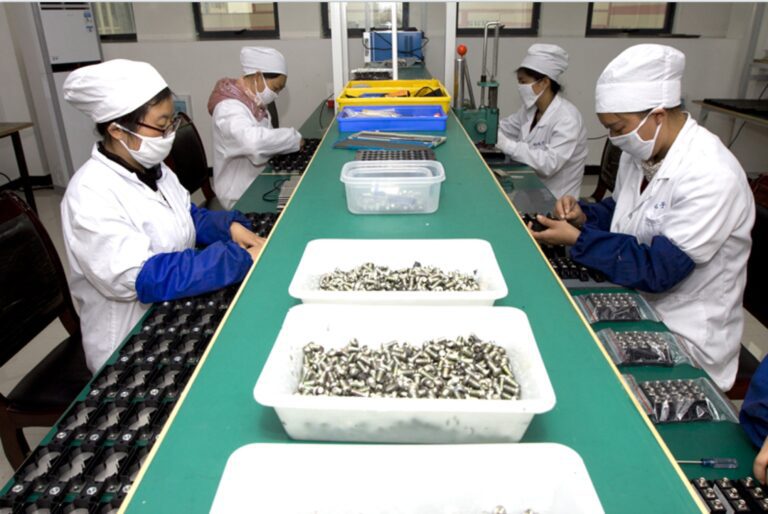

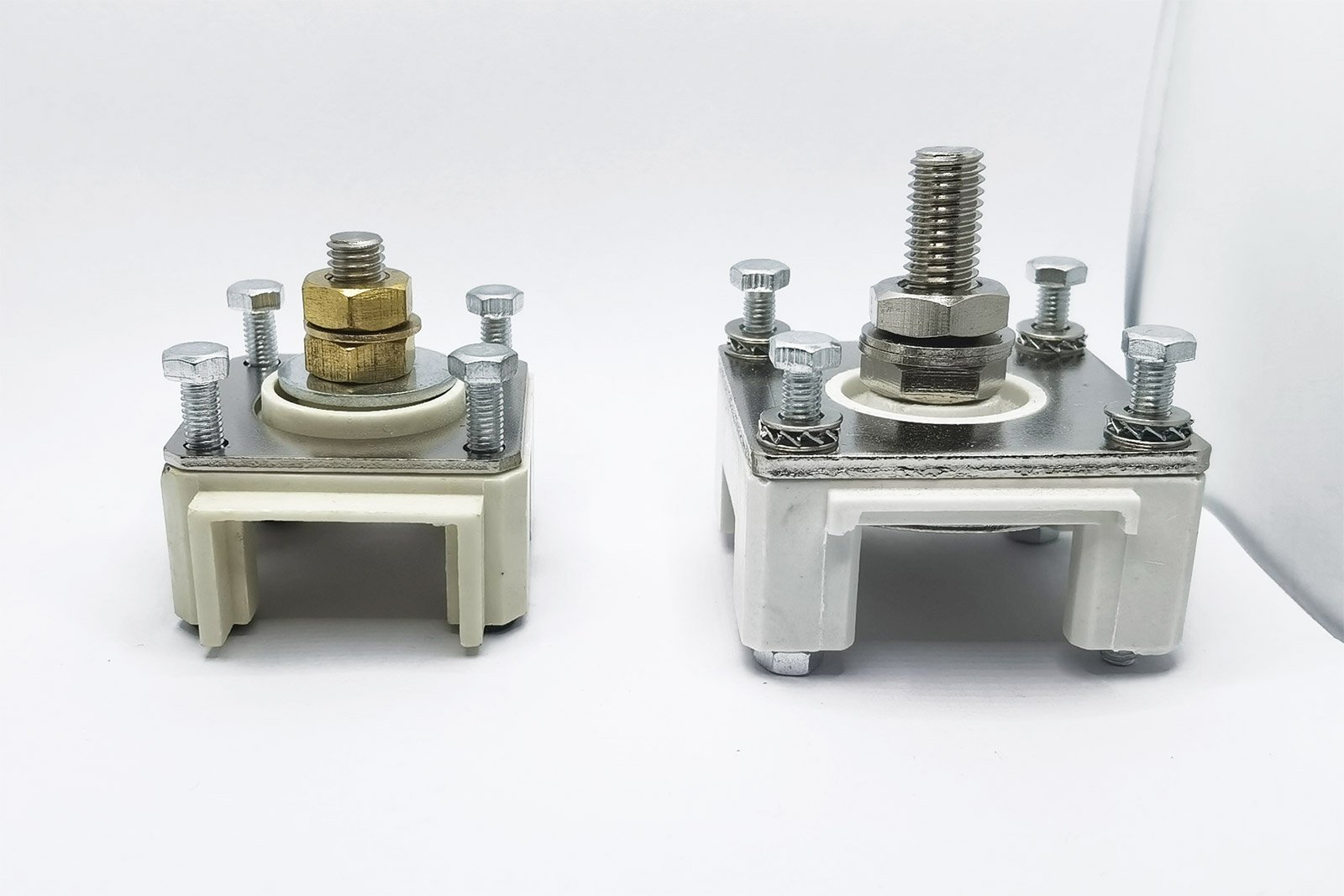

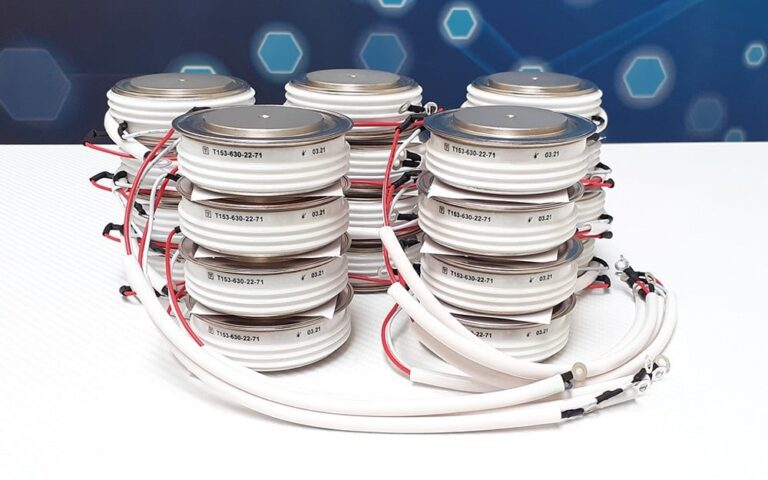

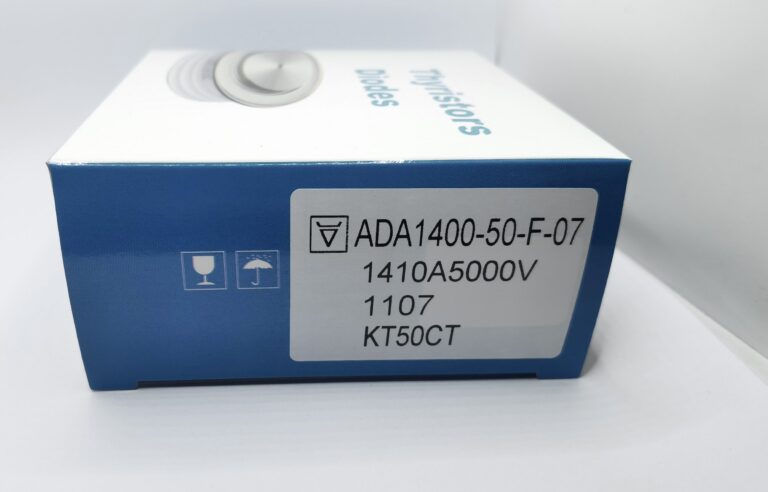

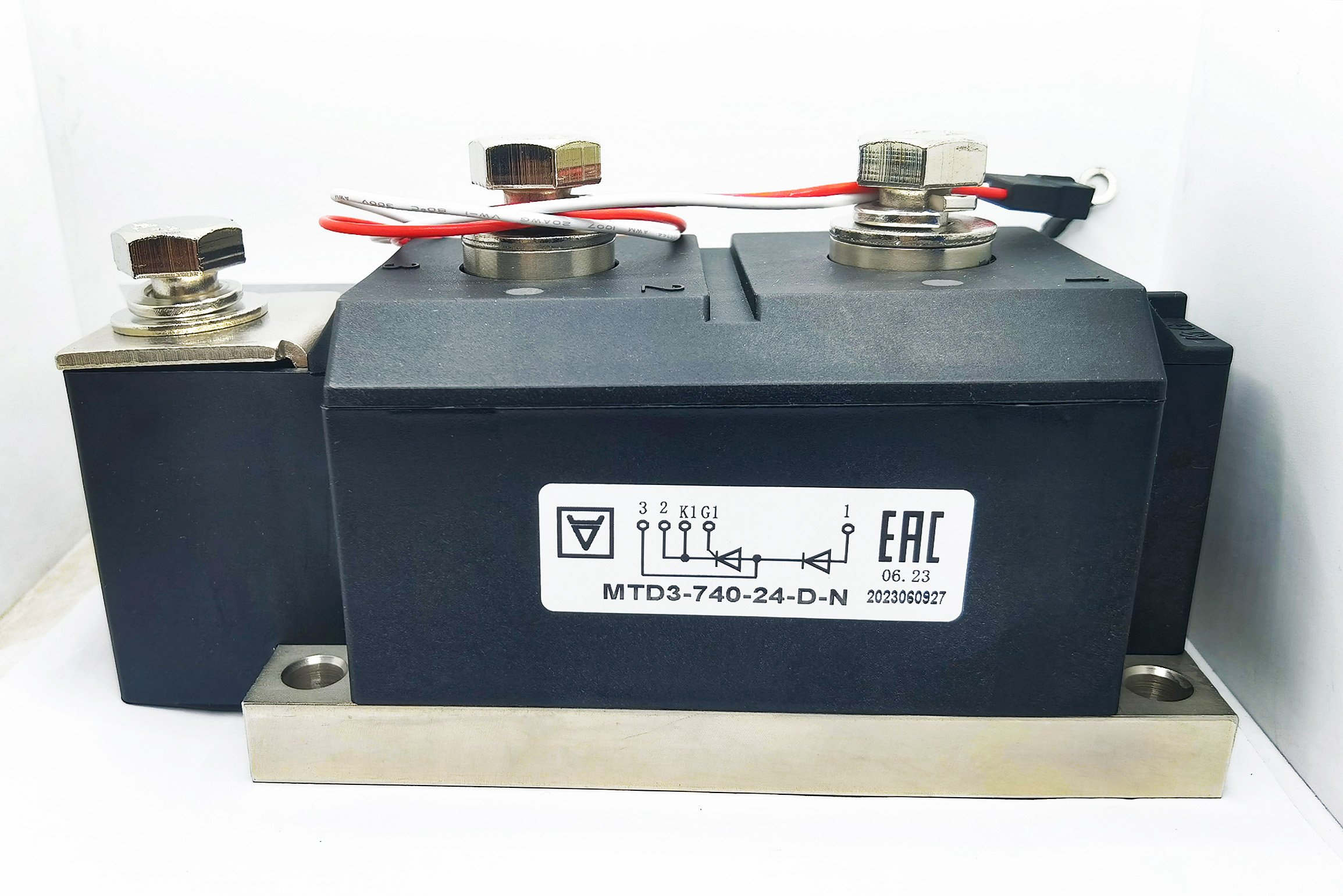

The photo gallery shows many different semiconductor devices, semiconductor chips and SCRs produced by JY FACTORY, examples of test reports. Previous Next
Power SCR Thyristor Modules MTA AS jythyristor factory are monolithic design with dual topology of semiconductors (two switches): thyristor-thyristor type.
Used in DC and AC circuits with loads to 1200A and reverse pulse voltages up to 3600V (depending on series). The thyristor modules are housed in a industry-standard housing making it easy to integrate the device into existing equipment.
Part numbering guide for thyristor modules MTA Installation recommendations for thyristor modules
The thyristor modules are characterized by high electrical and thermal cycling capability, meaning high reliability and long lifetime in intensive operation modes.
Rated range of currents of rectifier thyristor modules: 26A, 40A, 55A, 70A, 90A, 110A, 135A, 160A, 182A, 200A, 250A, 285A, 300A, 350A, 400A, 500A, 570A, 600A, 800A, 1000A, 1200A. Nominal voltage range: 600V, 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3400V, 3600V.
The main (power) terminals are on the top of the case and are marked as 1, 2, 3 (common anode-anode, cathode, cathode). The control terminals are marked as K1, G1, K2, G2.
Why choose JY FACTORY
- Own production facilities, including semiconductor silicon chips production
- European brand - 100% quality, favorable price, short production terms
- Over 20 years of experience in the semiconductor industry
- Clients from more than 50 countries trust us
- 20000 items in the product line for currents from 10A to 15000A, voltages from 100V to 9000V
- We produce analogues of other manufacturers' products
- Guaranteed certified quality, warranty period of operation - 2 years
Quality Warranty
Each product is tested for the main parameters, and Test reports of the parameters for each product are provided.
Geography of partnership
Thyristor factory company manufactures and supplies power semiconductors to more than 50 countries around the world.
Logistics and Delivery
We deliver our products all over the world with the services of logistics companies: DHL, TNT, UPS, EMS, Fedex, Aramex. Products can be delivered by any means of transport: air, sea, rail and road.

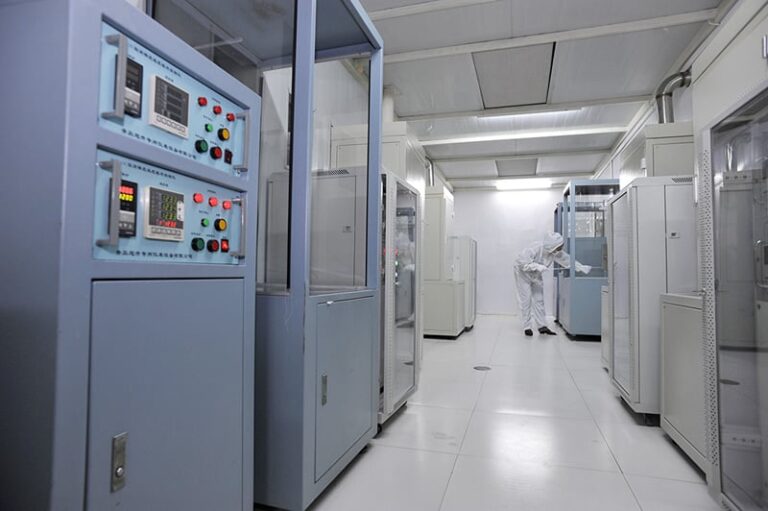

JY FACTORY Semiconductors Manufacturing
Our products range includes rectifier diodes, phase control thyristors in disc and stud design, avalanche diodes and thyristors, fast switching, high frequency thyristors, fast recovery, welding and rotor diodes, triacs, bridge rectifiers, power modules (thyristor, diode, thyristor-diode, IGBT), and air and water heatsinks to them.
Power diodes and thyristors are produced for currents from 10A to 15000A, voltage range from 100V to 9000V. Power diode and thyristor modules are produced from 25A and up to 1250A, voltage range 400V – 4400V. The range of power semiconductors also includes equivalent, replacement, analogue and alternative semiconductor devices of global manufacturers.
